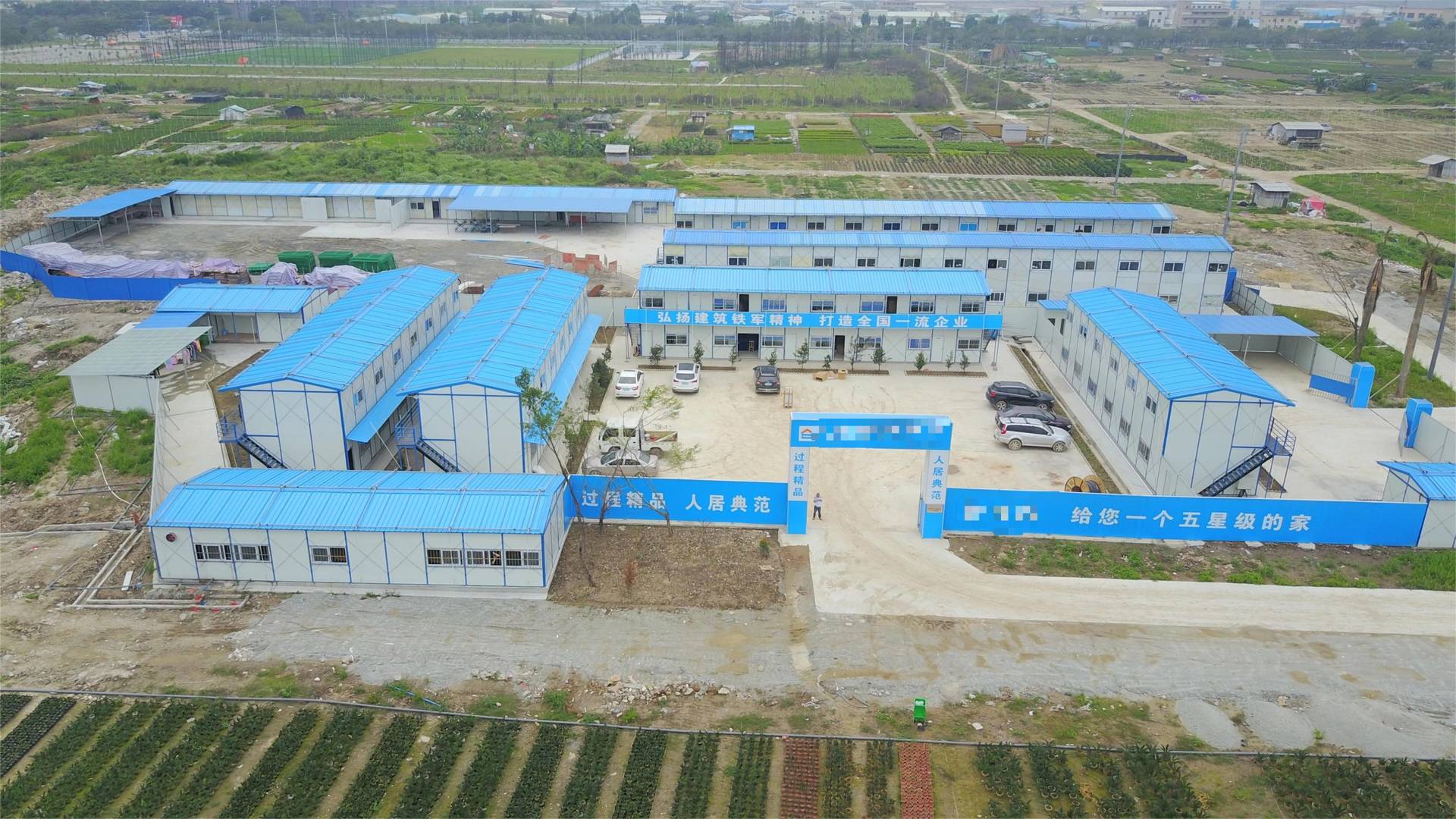

Prefab Camp Building | Professional Labor Housing and Offices Solution for Construction Site
Our prefab camp building provides an integrated solution for construction site operations, combining office spaces and accommodation units in one comprehensive complex. Built with professional-grade materials and systematic layout design, it offers efficient space utilization and comfortable working/living environment for construction projects.
The prefab camp building can be perfectly adapted to various scenarios:
- Construction Site Management Centers
- Project Administrative Offices
- Worker Accommodation Camps
- Infrastructure Project Bases
- Urban Development Command Centers
- Engineering Project Facilities
- Temporary Project Showrooms
- Site Training Centers
The product features Systematic Layout Design, Professional Steel Structure, Color-coated Roof System, Thermal Insulated Walls, Standard Window Units, Multiple Entry Points, Organized Parking Space, Central Courtyard Design.
Size & Dimensions
Our K Type prefab house uses a standardized measurement system based on the Ken unit (K), where 1K equals 1820mm, referring to the column spacing of 1820mm. The sizing calculation follows a simple formula:
For a 3K × 8K × 3P house:
- Width = (3K × 1820mm) + 160mm = 5620mm
- Length = (8K × 1820mm) + 160mm = 14720mm
- Height = 3P × 960mm = 2880mm (where P is the height unit)
The additional 160mm in width and length accounts for structural components. This modular system allows for flexible sizing to meet various requirements, with common configurations ranging from 3K to 30K in length and width, and options for single-story (3P), two-story (6P), or three-story (9P) construction.

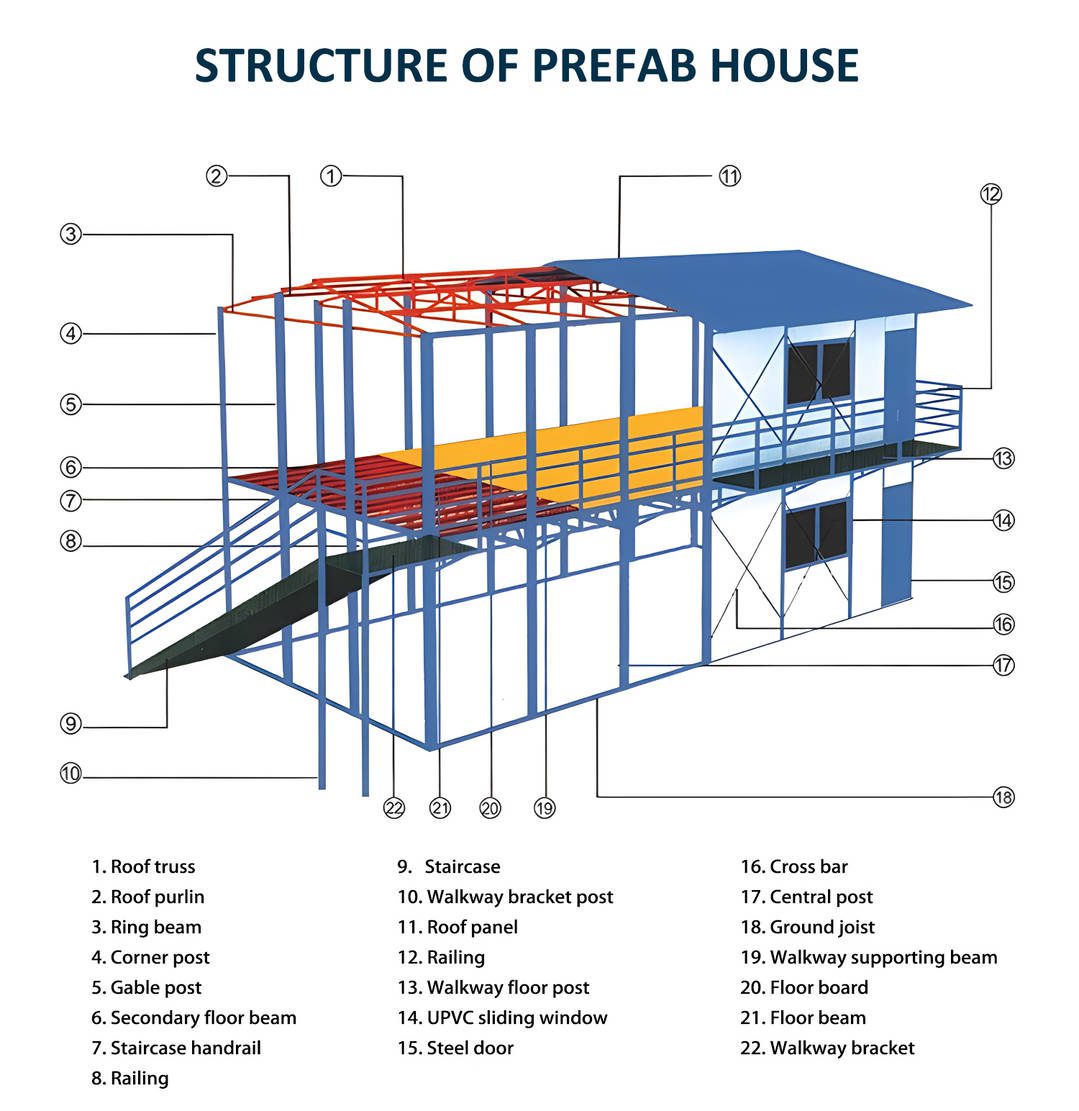

Structure

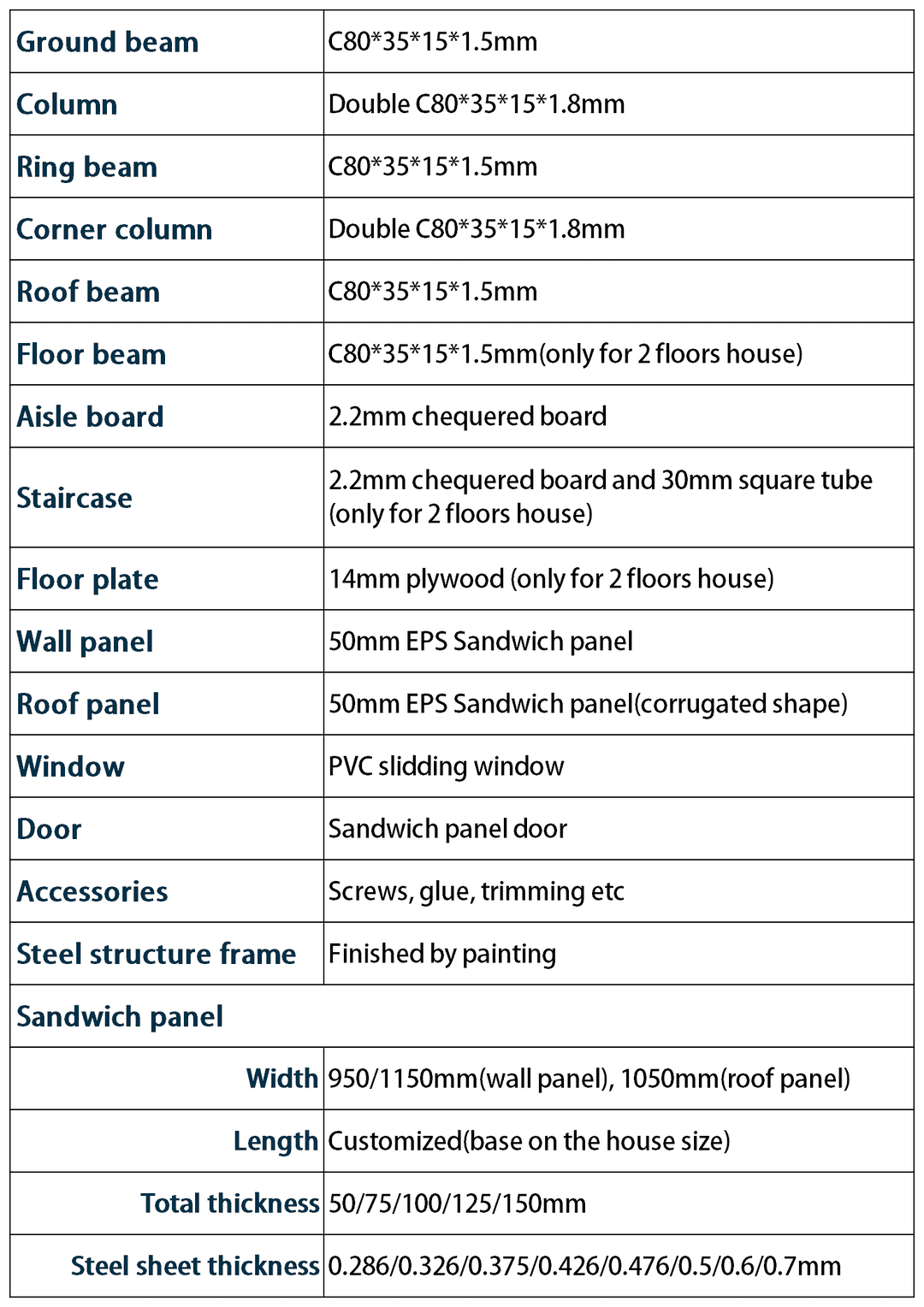

Specification
Key Advantages:
- Quick Installation & Relocation
- Cost-Effective Solution
- Customizable Layout Options
- Easy Maintenance
- Durable Construction
- Weather Resistance
- Energy Efficient Design
- Scalable Capacity
Our Service
Customization Solutions: All of our products are customizable, including size, appearance, color, and material. We can also modify details such as steel thickness, surface color, anti-rust treatment, wall panels, and base plates to meet your specific requirements. If you need enhanced configurations or have any special requirements, our staff is ready to provide professional consultation. Just Contact Us!
Loading Service: If you have purchased products from other suppliers that need to be shipped together, we are happy to offer container loading services. Our professional team will ensure all goods are safely and properly loaded into the container.
